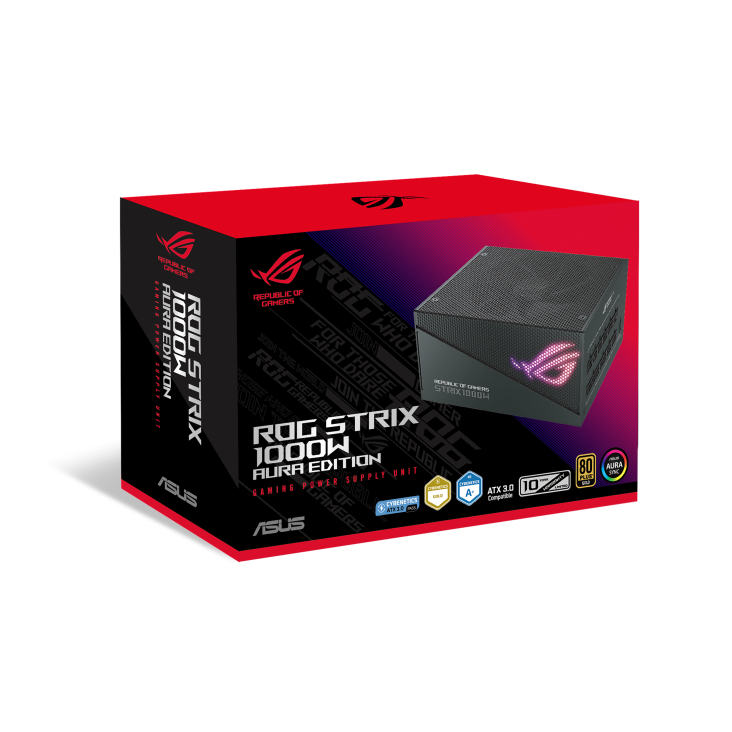

The ROG Strix 1000W Gold Aura combines premium components, superior cooling and captivating RGB illumination to create a formidable force. With huge ROG heatsinks, a high-efficiency Axial-tech fan, and a striking aluminum finish, it’s a pumped-and-primed PSU powerhouse for your next gaming rig. The ROG Strix 1000W Gold Aura Edition is encased in a strong, sleek aluminum chassis that also acts as a heatsink for the internal power transformer, further helping to reduce temperatures and minimize noise.
| SPECIFICATION |
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.0 |
| Dimensions | 180 x 150 x 86 mm |
| Efficiency | 80Plus Gold |
| MTBF | >120,000 hrs @ 25°C |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 22A 22A 83.3A 0.3A 3A |
| Combined Load | 120W 120W 996.6W 3.6W 15W |
| Total Output | 1000W |
Cable Connectors | - MB 24/20-pin x 1
- CPU 4+4-pin x 2
- PCI-E 16-pin x 1 (both PSU & component side)
- PCI-E 8-pin x 4
- SATA x 5
- PERIPHERAL x 4
|
| Package Contents | - Power Cord x 1
- Motherboard Power Cable x 1 (600mm)
- CPU Cable x 2 (650mm)
- PCI-E Gen 5 16-pin Cable x 1 (675mm)
- PCI-E 1-to-1 Cable x 2 (675mm)
- PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
- SATA 1-to-2 Cable x 1 (400+120mm)
- SATA 1-to-3 Cable x 1 (400+120+120mm)
- Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
- Addressable RGB Cable x 1 (800mm)
- User Manual x 1
|
| Weight | 3.03 kg (single PSU) |
| AURA SYNC | ARGB |
| Cybenetics Noise Level Certification | A+ |
| 0dB Technology | Supported. The fan shuts off entirely when the PSU is under certain load |
| 0dB Fan Button | Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels. |
