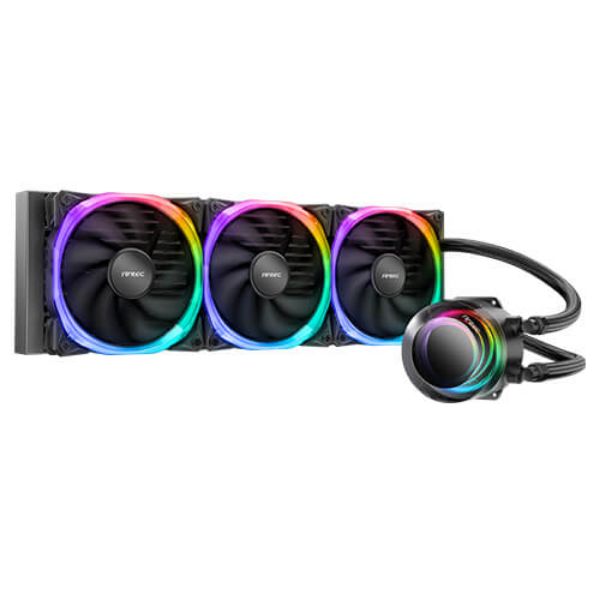

Antec VORTEX 360 ARGB Liquid Cooler delivers powerful cooling performance with a striking infinity mirror design and vibrant ARGB lighting. Featuring a high-efficiency pump, three 120mm ARGB fans, and wide compatibility with Intel and AMD sockets, it’s the perfect choice for gamers and PC enthusiasts looking for both style and performance.
| SPECIFICATIONS |
|---|
| Radiator |
|---|
| Radiator Dimensions | 397 x 120 x 27 mm | | Radiator Material | Aluminum |
| |
| Tdp Number |
|---|
| |
| Pump |
|---|
| Dimensions | ￠67 x 48.5 mm | | Rating Voltage | DC 12 V | | Minimum Startup Voltage | ≥ 5.0 V | | Fan Speed | 2800±10% RPM | | Rated Current | 0.25±20% A | | Consumed Power | 3.0 W | | Flow rate | ≥ 1300 mL/min | | Water Pressure | 1.4M | | Operation Temperature | -10°C ~ +60°C | | Noise Level | ≤ 28 dB(A) | | Lifespan | 40,000 hours | | Connector | PUMP: 3-pin | LED: 3-pin |
| |
| Fan |
|---|
| Model Name | Fusion 120 ARGB fan (AH12012FM1) | | Fan Type | PWM Fan | | Dimensions | 120 x 120 x 25 mm | | Bearing Type | Hydraulic Bearing | | LED Type | Addressable RGB | | Fan Speed | 600±200 ~ 2000±10% RPM | | Airflow | 57.93 CFM (max.) | | Air Pressure | 2.11 mmH₂O (max.) | | Fan Noise Level | 31.24 dB(A) | | Lifespan | 40,000 hours | | Connector | FAN: 4-pin PWM | LED: 3-pin | | Rated Voltage | FAN: DC 12 V | LED: DC 5 V | | Operation Voltage | FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V | | Rated Current | FAN : ≤ 0.21 A | LED : ≤ 0.58 A | | Socket Compatibility CPU | Intel : LGA 115X / 1200 / 1700 / 20XX
AMD : AM3 / AM4 / AM5 / TR4 |
| |
