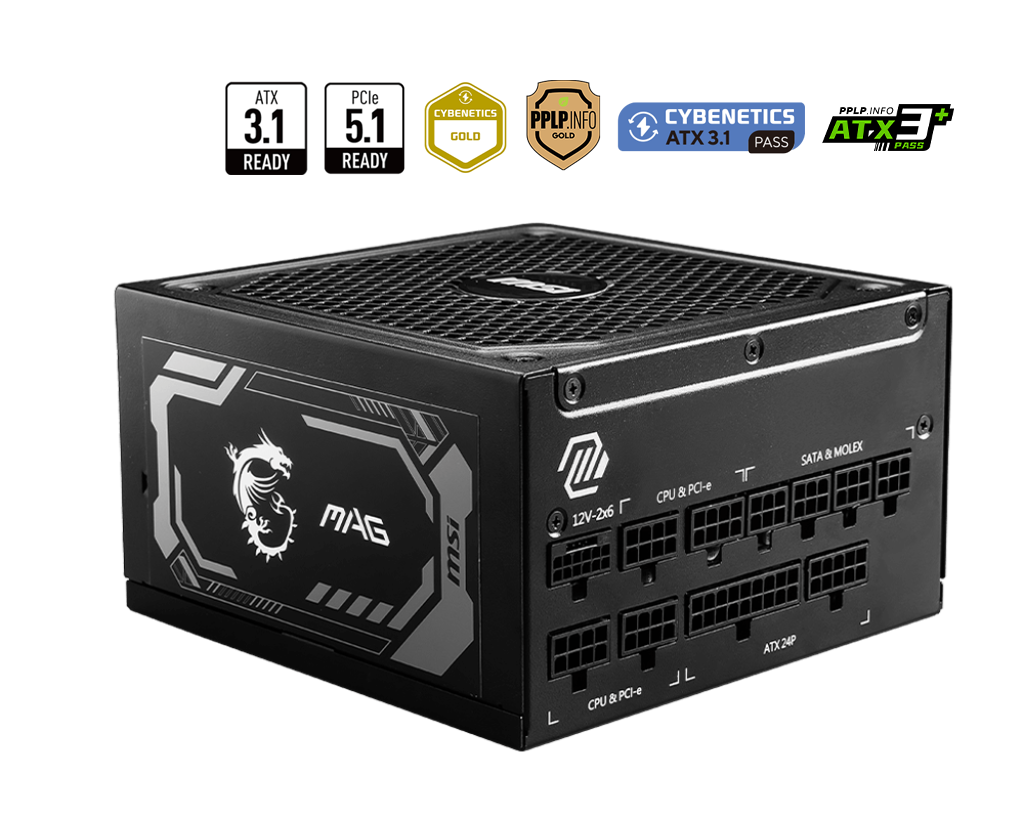

MSI MAG A1250GL PCIE5 is a high-performance 1250W power supply designed for next-gen gaming and workstation builds. Fully modular and PCIe 5.0 ready, it supports the latest GPUs with 80 PLUS Gold efficiency, quiet operation, and premium Japanese capacitors for long-lasting reliability.
| SPECIFICATIONS |
| Efficiency Rating | 80 PLUS Gold (up to 90%) |
| Modular | Yes (fully modular) |
| Fan Size | 135 mm |
| Fan Bearing | Fluid Dynamic Bearing |
| Dimensions (DxWxH) | 150 x 150 x 86 mm |
| PFC Type | Active PFC |
| Input Voltage Range | 100-240V~ |
| Power Watt | 1250W |
| Power Excursion | 2500W (*up to 200% of the PSU's rated power for 100μs) |
| Input Frequency Range | 50-60Hz |
| Protection | OCP / OVP / OPP / OTP / SCP / UVP |
| ATX (24 pin) | 1 |
| EPS (4+4 pin) | 2 |
| PCI-E 5.1 (16 pin) | 1 (600W) |
| PCI-E (6+2 pin) | 4 |
| SATA (15 pin) | 12 |
| PERIPHERAL (4 pin) | 4 |
| FDD (4 pin) | 1 |
